Mann et al 2007 Precipitation Teleconnections

Judith Curry suggested that we talk a little about Mann et al 2007 available here . I noted its publication last summer when Jean S and UC made some remarks about it. It has an extensive SI with code here and, in fairness to Mann, there is a serious attempt at documenting his work in the SI. At the time, I noted that Mann et al 2007 continued the use of his incorrectly calculated principal components – something that seems absurdly stubborn in view of the clear statements by both the NAS panel and Wegman that the calculation was erroneous. It also reflects poorly on the JGR referees that they should have allowed this incorrect method to remain in discussion and on the more extended community, including JEG and Judith Curry, that no one has seen fit to hold any of them accountable for it.

Today, I noticed something very interesting in his SI, that goes back to MM 2003 and demonstrates the fanatical resistance to admitting even the slightest error. In MM03 here, we observed that there was an exact match between the precipitation series in Mann’s gridcell 42.5N 72.5W (in New England) and the GHCN historical series for Paris, France. I summarized the match at the time with the phrase:

The rain in Maine falls mainly in the Seine.

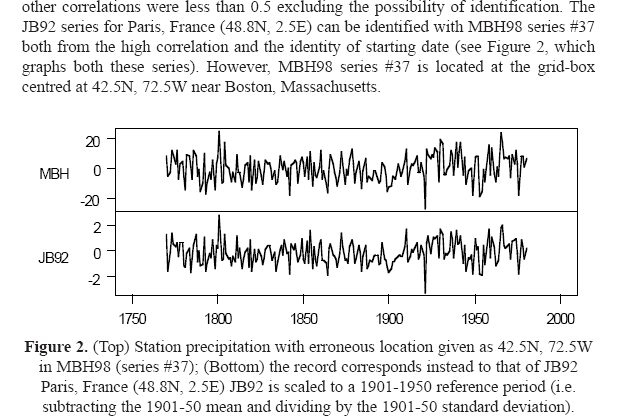

Here’s an excerpt from MM03 ( a paper with which Mann is familiar)


Subsequent to MM03, we observed that the location of all but one precipitation series in MBH98 was incorrect. We reported the problem to Nature. In Mann’s Corrigendum, he merely corrected the incorrect attribution to Bradley and Jones 1993, saying that the data came from “NOAA” but offering no hints as its provenance within that organization and not admitting that the locations were incorrect. In the 2004 Corrigendum SI, he left all the incorrect geographical locations uncorrected.

In the new SI, there is a table comparing each proxy to the corresponding gridcell and I thought that it would be interesting to see what happened with all these incorrectly located precipitation series – including whether Mann et al 2007 had stubbornly perpetuated the erroneous location. The table is here .

Sure enough, there’s not been a single change in any of the incorrect locations. The rain in Maine still falls mainly in the Seine. How bizarre. Mann then proceeded to calculate correlations between each precipitation series and an incorrect gridcell location – often wildly incorrect. Thus the Paris precipitation series was compared to New England gridcell information, Toulouse precipitation to a South Carolina gridcell and a precipitation series near Philadelphia to the information from the gridcell containing Bombay! A severe test of teleconnection.

I did a quick re-analysis in which I calculated correlations of the 11 MBH98 precipitation series to the 72 GHCN (ndp041 vintage) precipitation series that started before 1830. For each MBH series, I identified the GHCN series with the highest correlation and then made a new table showing the lat and long of the identified series and the MBH series. About half the series have correlations of 1 and are firmly identified. Other series have correlations of around 0.8-.9 and the exact provenance of the series remains unknown although the locations are undoubtedly near the ones shown here. To my surprise, I actually figured out how Mann screwed up his precipitation coordinates. Take a look below and see if you can figure out the pattern.

Station Id

Correlation

GHCN Site

GHCN Lat

GHCN Long

MBH Grid Lat

MBH Grid Long

4327900

1

MADRAS/MINAMBAKKAM

13

80.18

12.5

82.5

7240811

0.913

WEST CHESTER 1W

39.97

-75.63

17.5

72.5

0763000

1

TOULOUSE/BLAGNAC

43.63

1.37

37.5

-77.5

0765000

1

MARSEILLE/MARIGNANE

43.45

5.23

42.5

2.5

7250706

0.821

NEW BEDFORD

41.63

-70.93

42.5

7.5

0715000

1

PARIS/LE BOURGET

48.97

2.45

42.5

-72.5

1123100

0.836

KLAGENFURT-FLUGHAFEN

46.65

14.33

47.5

2.5

1151800

1

PRAHA/RUZYNE

50.1

14.28

47.5

12.5

0365701

0.838

OXFORD

51.7

-1.2

52.5

12.5

0310202

1

EALLABUS

55.6

-6.2

52.5

-2.5

0316001

1

EDINB.OBS./BLACKFORD

55.9

-3.2

57.5

-7.5

The first row is located OK. But the MBH lat-longs for the 2nd row shouldn’t be there. All the coordinates for rows 3-11 should be moved up one row to rows 2-10. I presume that he intended to have a Bombay precipitation series in the data set, but forgot to actually include it. So a series is shown in that location when none actually comes from there. While a Bombay precipitation series might provide useful information about the monsoon, one feels less confident that precipitation data from near Philadelphia, interpreted as Bombay precipitation, will provide a lot of useful information on the monsoon, but I guess we should never underestimate the power of teleconnection.

This is the third time that I’ve seen a goofy collation error in MBH materials. In the original proxy data set that Rutherford directed me to, all the PC series were off one year. This was the famous data set that Mann subsequently said was the “wrong” data set and deleted, reproaching me for actually relying on the data set at his website to which Scott Rutherford had directed and which I’d even asked Mann to confirm that this was the correct data set. (A new archive suddenly materialized in Nov 2003.)

Then in Rutherford et al 2005, there’s a similar collation which we discussed at the time, in which, as I recall, his temperature series are all displaced one year incorrectly relative to the proxy collation.

When I first observed that the rain in Maine falls mainly in the Seine, I hadn’t considered the possibility of teleconnection. I just thought it was an error (and I still think this.) JEG describes Mann et al 2007 as a “sophisticated” analysis. But because Mann has not corrected the geographical locations of his precipitation series, all the calculations showing correlations to the gridcell location for these series are incorrect – despite this matter being brought to his attention long ago.

All in all, I feel that it detracts somewhat from the explanatory value of Mannian teleconnection theory if data sets could be located on incorrect continents without any affect on the results.
