Will the Real Slim Shady Please Stand Up? Re-Mix.

There’s an amusing little incident with the deleted “original” data set that was posted up for a few minutes at Mann’s website – you know, the data set that was first demonstrably referenced by a CA reader in the early morning of Sep 5. (I’ll reserve comment for now on issues relating to the timestamp of this data set and the Gavin Schmidt hyperlink to it, presently pointing to a data version that did not exist at the time that the hyperlink was supposedly created.)

Within a day, on the afternoon of Sep 5, the data set was deleted and replaced with another data set, again without notice, in a bewildering concatenation of replacements that is reminiscent of our experience with the Hansen’s GISS data almost a year to the day ago. However, both myself and others took the precaution of downloading the Sep 4 version as soon as we saw it – just in case it disappeared. Not an imprudent precaution, given its almost immediate deletion.

I’ve now had an opportunity to forage through the deleted version. The deleted data had 1357 series, from which 148 series were deleted to yield the 1209 series that now appear in the “original” data. But surely the 1357 series is “more” original than the 1209 series? What criteria were used to winnow out the 148 removed series? Inquiring minds want to know. There’s not a whisper on this topic in the paper or in the SI and, of course, all traces of the 148 series were ruthlessly scrubbed from Mann’s website.

Surprisingly, on the list of deleted series was a series entitled “Yamal 2002″. Now Yamal is very familiar to CA readers, as Briffa replaced the Polar Urals update (with a high MWP) with his Yamal version (with a HS) and this one substitution affects a number of reconstructions (discussed on many occasions:

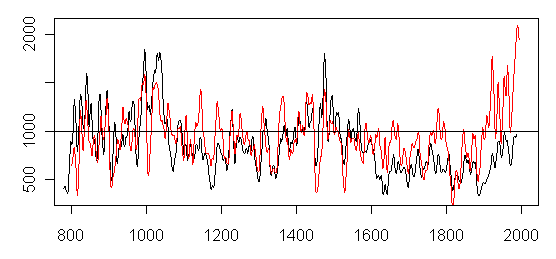

The graphic below illustrates the difference between the Polar Urals update (black) and Yamal (red) (See above links for the impact of the Yamal substitution on the Briffa 2000 reconstruction, a spaghetti graph)


Figure 1. Comparison of Polar Urals update to the Briffa Yamal version.

So why was this series excluded from Mann et al 2008? And if it was no good for Mann et al 2008, why is it any good in the “other” studies?

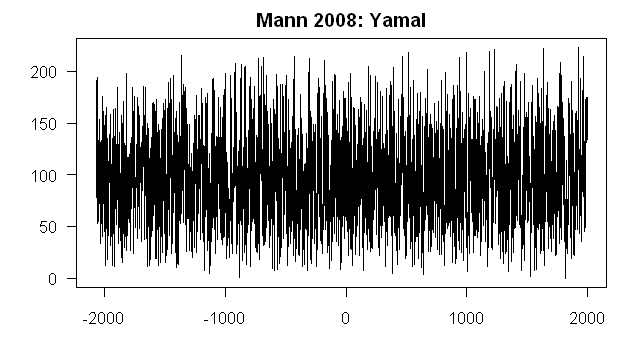

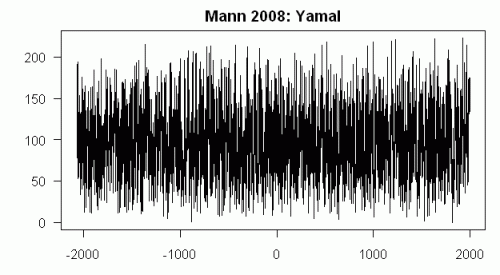

Just for fun, I plotted up the Mann 2008 version of Yamal (shown in the graphic below):


Figure 2. Plot of “Yamal 2002″ in deleted Mann et al 2008

Quite obviously this data set doesn’t have a HS and doesn’t look anything like the Briffa version of Yamal. Where did it come from? This data version is the Yamal version from the original authors (available at WDCP here ). This version matches the graphic in Hantemirov 2002. (In passing, I’ve observed previously that Juckes et al and other Team articles have cited Hantemirov, when they actually used a Briffa version that is not located at WDCP.)

Where did the Briffa Yamal version come from and why is it different than Hantemirov’s? Presumably they use different standardization methods, but then one would have to see the measurement data, which Briffa thus far has steadfastly refused to disclose (for 8 years and multiple articles.)

I still don’t know why the Hantemirov version wasn’t used in Mann et al 2008. Would it “matter”? Yes and no. As a single series, it wouldn’t necessarily “matter”, but it would be nice to know why these series were excluded. Curiously, Mann used Briffa’s Tornetrask version (not Grudd’s), so it’s not like he refused to use grey Briffa versions. It’s odd that the Hantemirov version got into the mix in the first place.

Now there’s a nice little ending to this story. The “wrong” data set – the one deleted from Mann’s website – is the one that Mann sent to WDCP, an archive of record, where Mann can’t change “inconvenient” data sets without leaving a trace. So WDCP has one “original” data set and Mann’s website has another.

Will the real Slim Shady please stand up? (Re-Mix).

73 Comments

  1. Posted Sep 12, 2008 at 7:25 PM | Permalink | Reply

    Just as a matter of interest, what if a mining exploration company put up the results of its split core analyses as part of its responsibilities to the stock market, and then suddenly and without warning cut down the number of analyses posted which had the effect of inflating the expectation of mineral yield.

    Would this hypothetical exploration company be allowed to get away with such a substitution?

  2. John Baltutis
    Posted Sep 12, 2008 at 7:26 PM | Permalink | Reply

    For those so inclined, the “original” data set is at

  3. John Baltutis
    Posted Sep 12, 2008 at 7:27 PM | Permalink | Reply

    Link adding is broken. The complete set is at: ftp://ftp.ncdc.noaa.gov-1/paleo/contributions_by_author/mann2008

  4. jae
    Posted Sep 12, 2008 at 7:32 PM | Permalink | Reply

    True comedy!

  5. Jeff Alberts
    Posted Sep 12, 2008 at 7:40 PM | Permalink | Reply

    Am I correct in assuming that in the first graph the black is Polar Urals, and the red is Yamal?

    • Posted Sep 12, 2008 at 7:54 PM | Permalink | Reply

      Re: Jeff Alberts (#5),

      Correct.

      Re: Jeff Alberts (#6),

      Because the “F word” has legal implications. I think it’s fairly safe to call it scientific misconduct, because frankly, ever since we’ve had the pleasure of analyzing Dr Mann’s work in climate science, he appears incapable of not massaging his data if it improves the “result”.

  6. Jeff Alberts
    Posted Sep 12, 2008 at 7:44 PM | Permalink | Reply

    I still can’t understand why you don’t call this what it is, Steve. You know what I mean, the word you snip out whenever mentioned. It’s so blatantly obvious.

  7. Craig Loehle
    Posted Sep 12, 2008 at 7:53 PM | Permalink | Reply

    Mann’s got to get up pretty early in the morning to outsmart our favorite auditor…

  8. John Baltutis
    Posted Sep 12, 2008 at 8:18 PM | Permalink | Reply

    Re: #3

    There’s a typo in the link I posted. This one should work:
    ftp://ftp.ncdc.noaa.gov/pub/data/paleo/contributions_by_author/mann2008

  9. Gerald Machnee
    Posted Sep 12, 2008 at 8:53 PM | Permalink | Reply

    There must be an expert somewhere who can say it is perfect.

  10. bill-tb
    Posted Sep 12, 2008 at 9:09 PM | Permalink | Reply

    You might be interested in this, it was specifically targeted at the type of ‘rabbit hunt’ that climate data has become …

    The U.S. has a law, Data Quality Act of 2001, this law requires federal agencies to ensure the integrity of the information they use and distribute. It also allows outside parties to petition to force the correction of information they believe is wrong.

    The Data Quality Act (DQA) passed through the United States Congress in Section 515 of the Consolidated Appropriations Act, 2001 (Pub.L. 106-554). The Government Accountability Office calls it the Information Quality Act, while others call it the Data Quality Act.

    The guidelines under subsection (a) shall –

    (1) apply to the sharing by Federal agencies of, and access to, information disseminated by Federal agencies; and

    (2) require that each Federal agency to which the guidelines apply –

    (A) issue guidelines ensuring and maximizing the quality, objectivity, utility and integrity of information (including statistical information) disseminated by the agency, by not later than 1 year after the date of issuance of the guidelines under subsection (a);

    (B) establish administrative mechanisms allowing affected persons to seek and obtain correction of information maintained and disseminated by the agency that does not comply with the guidelines issued under subsection (a); and

    (C) report periodically to the Director –

    (i) the number and nature of complaints received by the agency regarding the accuracy of information disseminated by the agency; and

    (ii) how such complaints were handled by the agency.

    This could be fun.

  11. Steve McIntyre
    Posted Sep 12, 2008 at 9:21 PM | Permalink | Reply

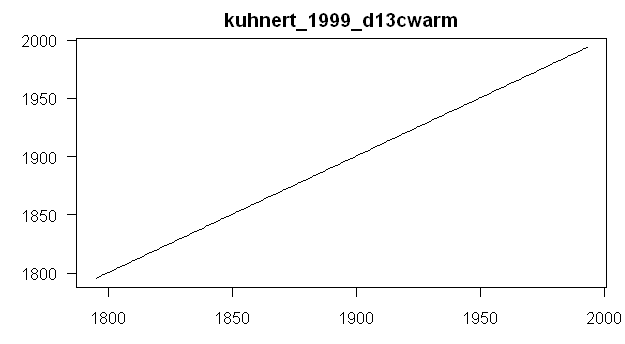

    Here’s another interesting data series in the Mann archive of “original” proxies at WDCP, one which shows a remarkably linear trend. Now this “proxy” wasn’t used. I wonder what criterion it failed.
