Five Alaskan BSi Series

At the second meeting of Kaufman’s PIs, one of the scientists plaintively asked:

But shouldn’t we aim to do a synthesis that is only lake seds (at least as first step)?

This logical building block was pushed aside (thereby allowing Briffa’s Yamal series to be recycled for the nth time) on the following grounds:

some modeling experiments will require tests vs paleodata from other parts of the world (not just our lake sites)

As we observed to (bender’s) surprise the other day (see comments in thread …), Kaufman et al 2009 did not actually contain model results for the past 2000 years although that was supposedly part of the program – Kaufman Figure 4 uses results from a CSM model for the period 5600-3600BP. Nothing is mentioned in Kaufman et al 2009 about Ammann and Schneider’s runs (though they were discussed at PI meetings)

Although the archiving record of Kaufman’s program at NOAA is very incomplete, there have been some useful additions to the Alaskan BSi record from Kaufman’s MSc students that we’ve been discussing over the last few days. Yesterday, I mentioned Daigle’s Goat Lake BSi series, which showed a remarkable contrast between LIA sediments and MWP sediments. An excerpt is shown below.

Should any MSc students read this thread, I though that Daigle’s graphic was considerably more effective than the corresponding graphics in theses by Kathan and McKay, as it nicely integrated the geological classification of the sediments with the quantitative information from BSi % and Organic Material %. Low values of BSi% and OM% are associated with a type of gray mud, while high values of BSi% and OM% are associated with “gyttja”.

Only McKay’s Hallet Lake series was used in Kaufman et al 2009. Here is the Hallet Lake BSi series (as rendered into Kaufman decadal averages and rendered into SD units) – showing both the Kaufman archived version and my replication. The NCSC archive observes that a new version was filed in Nov 2008 and possibly Kaufman used an older version of the Hallet series. (I’ve exactly replicated about 10 Kaufman series from original data and am 100% confident that I’ve got his decadal averaging and re-scaling method. In my emulation, I’ve included 3 BSi upspikes reported in the MSc data, but expunged in the NCDC version.)

In either version, Hallet Lake BSi has a 20th century uptick, a depressed medieval warm period (always attractive to the Team) and an elevated early first millennium.

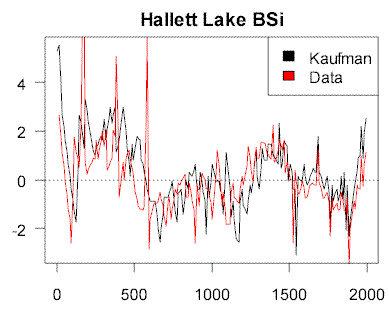

Figure 2 – Versions of Hallet Lake BSi in SD Units – Kaufman archive and emulated from MSc data.

In order to orient readers to a broader range of BSi values than the Hallet Lake site used in Kaufman, the graphic below compares BSi % over the Holocene for 5 Alaskan sites ranged from west to east. Information from three of these sites (Goat, Cascade, Hallet) are from Kaufman’s MSc thesis (I manually typed in the Goat Lake values as these were annoyingly in a photo-format.) Two sites are from other groups and archived at NCDC. Only the Hallet BSi value is used in Kaufman 2009.

The contrasts in Daigle’s Goat Lake series are obviously much sharper than the corresponding series from Kathan (Cascade Lake) and McKay (Hallet Lake) (or the other two sites.) This seems like an extremely interesting and useful result – precisely the sort of thign that one would like to have seen discussed in a “synthesis that is only lake seds (at least as first step)”. All of the following series show BSi (plotted as % rather than SD units). Take a look and I’ll comment further below.

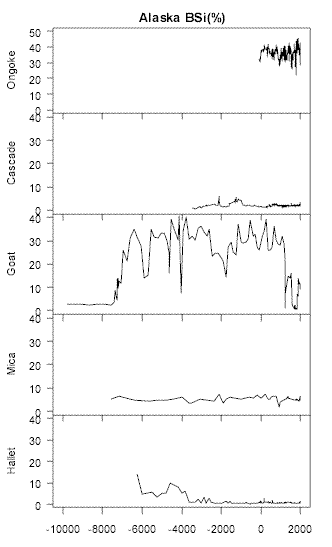

Figure 3. Five Alaskan BSi % series.

Obviously the BSi contrast at Goat Lake is 1-2 orders of magnitude greater than at the other sites. In most forms of analysis, it’s easier to work from strong contrasts than from weak contrasts and I don’t think that there’s any exception here.

The big contrast at Goat Lake is between the very low BSi% in the grey (predominantly inorganic) mud of the Little Ice Age and the LGM and the elevated BSi% associated with gyttja in the Holocene Optimum, the MWP and with modern warm period sediments. Daigle observed that the LIA glacier advance at Goat Lake was unprecedented since the LGM ( I didn’t check whether he used the u-word, but he made the point.) BSi% at Goat Lake in the MWP is very high (as you can see) though not quite at the overall maximum; the anti-MWP animus in the “community” is so great that despite the elevated BSi values compared to the LIA and modern period, Daigle is obliged to observe the following:

Warmer temperatures during the MWP are not recognized in the Goat Lake productivity signal, in which OM remains constant and BSi decreases from 31% at 1000 AD to 26% at 1200 AD (Figure 22).

In comparison with the striking contrast at Goat Lake, there is negligible contrast in the Hallet Lake BSi record employed by Kaufman. Re-examining the McKay thesis, the Hallet Lake sediments unsurpisingly are reported to be grey mud (not gyttja) – the color of the lower mud (with higher BSi values) is a “dark grey” while the more recent portion is a “light” grey. At nearby Greyling Lake (the original NSF30 target), a gyttja zone is reported, but Kaufman did not take any BSi measurements and focused on nearby Hallet Lake.

As a third party looking at this proxy for the first time (albeit one coming with experience in geological literature and proxy literature), it’s hard for me to avoid the view that the minor Hallet Lake BSi fluctuations are extremely unlikely to be usable as any sort of useful climate record (likewise, the Cascade Lake BSi record.) It seemed to me that Goat Lake represented a much better building block, but that’s just a first impression.

I echo the frustration of the scientist who asked:

But shouldn’t we aim to do a synthesis that is only lake seds (at least as first step)?

I have less than zero interest in yet another CPS-style reconstruction blending Yamal with a bunch of other data with no common “signal” which is what we got. But it would have been very interesting to see a “synthesis” of lake sediments in which the work was carried out with consistent methods, thereby permitting an overall assessment of the value of the proxy. If this be “vicious commentary”, so be it.
