Wahl and Ammann Again #1

I asked KNMI what were the studies that had “refuted” our work. It seems to be Wahl and Ammann. I’ve never understood the traction of Wahl and Ammann with climate scientists. I doubt that any of them have worked through the details, but Wahl and Ammann issued a press release that all our claims were “unfounded” and that seems to be enough to settle things in climate world. Of course, they proved no such thing, but press releases seem to be what people pay attention – this is true in mining promotions as well.

When climate scientists say that they want to “move on”, you notice that they don’t use that against Wahl and Ammann. They want to “move on”, but they want to get in the last word. Thus, Wahl and Ammann. But it’s not like Wahl and Ammann are independent – they are Mann’s recent co-authors and Ammann was a PhD student under Mann and Bradley. Their article simply fleshes out points that Mann himself had already made in his correspondence with Nature – although Mann is nowhere mentioned in the acknowledgements – presumably in an attempt to make the study seem “independent” – a claim that Wegman rejected sarcastically.

Anyway I’ve finally sucked in my gut and begun the turgid task of seeing exactly what Wahl and Ammann did. As I mentioned in May 2005, our codes reconciled almost exactly (and I made a very small modification to my emulation code so that they now reconcile exactly.) Based on this and the very real possibility of listing a number of agreed findings, in December 2005, as I reported earlier, I proposed that we attempt to produce a joint statement of agreed results (failing which we could continue controversy). Had this happened, people would have saved a lot of time and energy – indeed both the NAS panel and Wegman reports would have been very different and more constructive. However, Wahl and Ammann chose to engage in more controversy.

Ultimately, I don’t think that anyone on the Team side will find that this was a wise decision. As I’ve started parsing through WA in more detail, there are problems that, in many ways, are worse than MBH – if only, because the second time around is a bit of a farce. Anyway on to details.

The key scenarios in WA for principal component discussions are Scenarios 5 and 6. Scenario 5 considers reconstructions under the following 4 scenarios: a) Mannian PCs; b) two correlation PCs; c) two covariance PCs; d) four covariance PCs. All scenarios are without the Gaspé extrapolation. This is fair enough. These correspond to the cases in play (with 5b being the Huybers case.) As a reminder, “full standardization” in a PC context simply means using correlation PCs rather than covariance PCs – a method not endorsed by the NAS panel in this context. But that’s a different story and ultimately not relevant to anything. Figure 1 below is a direct paste of WA Figure 5, which shows these scenarios for the 1400-1500 detail period. The case with 2 covariance PCs (the high 15th century case in MM05b) is shown in two colors – pink for the 1400 step; green for the 1450 step. The split between the 1400 and 1450 step will be discussed later.

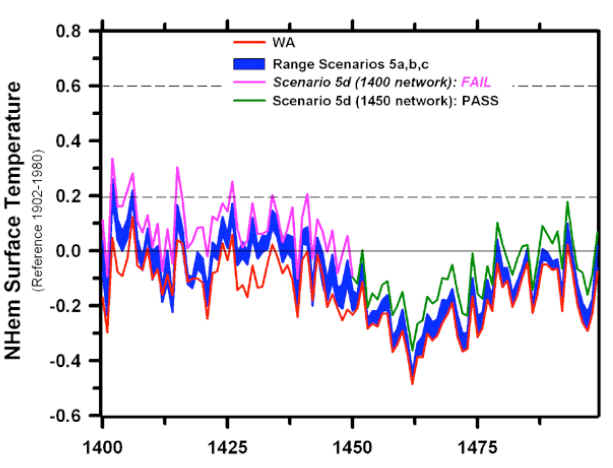

Figure 1. WA Figure 5. Red – two Mannian PCs (WA); pink/green – two covariance PCs, pink for 1400-1450; green for 1450-1500; blue – range of 2 correlation PCs and 4 covariance PCs.

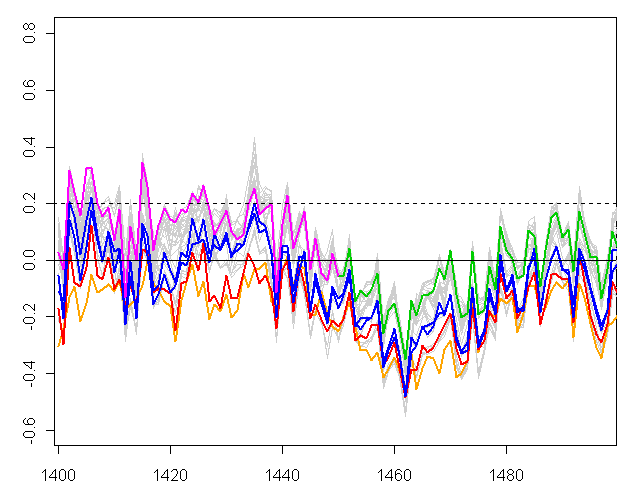

The next figure, Figure 2, shows my replication of Figure 1 above to show that the algorithms are apples and apples. There is one slight difference in parameters. WA annoyingly did their calculations on a slightly different set of temperature PCs than Mann used and with unweighted proxies (while Mann had assigned weights in some unknown method.) There’s not much difference in the results (as evidenced by the similiarity of the emulation to WA.) However there are some differences in detail. WA proclaimed the similarity under these parameter changes as evidence of MBH98 “robustness”, although these particular steps have never been in issue.

The orange line added here is the MBH98 reconstruction itself. You will notice that it is lower than the WA emulation. WA stated that these differences are due to their use of different PCs and weights. This is simply false. At best, WA recklessly made the assertion without checking. I’ve reconciled all calculations exactly; similar differences remain using WA methods on MBH temperature PCs and weights. As a reviewer of the first draft, I asked that they benchmark using actual MBH PCs and weights to avoid annoying reconciliation problems, but this logical request – which had no controversial angle – was ignored by WA and Climatic Change. The pale grey lines are various cases involving absence of bristlecones – ignore that here. Anyway, you can see that we’re talking apples and apples in this discussion.

Figure 2. Emulation of WA Figure 5 with MBH weights and PCs. Red – two Mannian PCs (WA); pink/green – two covariance PCs, pink for 1400-1450; green for 1450-1500; blue – range of 2 correlation PCs and 4 covariance PCs; orange- archived MBH98 reconstruction.

I mentioned above that our results in MM05b reconcile closely to WA results. This is shown very clearly in Figure 3 below. On the right are smoothed versions of WA Scenario 5 results (as I’ve emulated the calculations); on the left are our archived results from MM05b Figure 1, all shown in a consistent color code. Obviously, the results for the MBH emulation (red) and 2 covariance PCs (pink) are consistent. Further, in addition to the results illustrated in MM05b, MM05b stated that results using 2 correlation PCs were about halfway between “MM”-type results and MBH-type results and that using 4 covariance PCs was more like MBH-type results – findings which are surely consistent with WA results (blue on right). MM05b stated:

If the data are not transformed (MM), but the principal components are calculated on the correlation matrix rather than the covariance matrix, the results move part way from MM to MBH, with bristlecone pine data moving up from the PC4 to influence the PC2.If a centered PC calculation on the North American network is carried out …

MBH-type results occur if the NOAMER network is expanded to 5 PCs in the AD1400 segment (as proposed in Mann et al., 2004b, 2004d). Specifically, MBH-type results occur as long as the PC4 is retained, while MM-type results occur in any combination which excludes the PC4.

There is virtually no difference between what we said in MM05b and the WA Scenario 5. It is exceedingly annoying that WA did not discuss the close relationship between what we had said in MM05b and what they said. Indeed, their failure to reconcile the results arguably rises to a distortion of the record – a point which that I made as a reviewer, but which Climatic Change and WA ignored.

Figure 3. MBH-style reconstructions. Left: Archived results from MM05(EE) Figure 1. Right – WA Scenario 5 results (emulation). Pink – 2 covariance PCs; blue – 2 correlation PCs; also 4 covariance PCs; red – WA case with Mannian PCs; orange – MBH98.

WA Scenario 6 explores the effect of not using bristlecones in the North American networks in MBH-type calculations. Again, there is nothing material in the actual calculations with which I disagree, although their conclusions do not follow. Figure 4 below compares the reconstructions with and without 15 bristlecone sites. The left panel repeats the Scenario 5 diagram already shown, while the right panel shows corresponding results for networks without 15 bristlecone sites. Obviously, reconstructions without bristlecones – regardless of PC method – yield virtually identical results to calculations using 2 covariance PCs – a point acknowledged by WA.

Figure 4. Left – WA Scenario 5 as previously described. Right – WA Scenario 6 with xxx bristlecone series excluded. Orange – MBH98 for reference. Red – with two Mannian PCs (WA Scenario 6a); magenta – with 2 covariance PCs (WA Scenario 6c) ; blue – one graph with 2 correlation PCs (WA Scenario 6b); one graph with 5 covariance PCs.

WA acknowledged in multiple places that the PC issues corresponded to how much weight was placed on bristlecones:

When two or three PCs are used, the resulting reconstructions (represented by scenario 5d, the pink (1400- 1449) and green (1450-1499) curve in Fig. 3) are highly similar (supplemental information). As reported below, these reconstructions are functionally equivalent to reconstructions in which the bristlecone/foxtail pine records are directly excluded (cf. pink/blue curve for scenarios 6a/b in Fig. 4).

and in the Legend to their Figure 3 describing Scenario 5d with 2 covariance PCs:

Pink (1400-1449) and green (1450-1499) reconstruction is same as scenario 5c, except with too few PC series retained to capture information dynamic structure of ITRDB data (acting in effect as exclusion of bristlecone/foxtail pine records from PC calculations) (scenario 5d)

and in the Legend to their Figure 5 which states:

The emulations directly exclude the bristlecone/foxtail pine records from calculation of PC summaries of N. American tree ring data (which are indirectly excluded by MM05a/b, cf. “Results” in text). [implicitly referring to the 2 covariance PC case]

Statistical and “Climatological” Significance
So far there’s nothing in the WA calculations where I have a material disagreement. As opposed to showing that our calculations were “unfounded” they pretty much replicate our results. WA report a variety of verification statistics for the various permuations. Other than the verification statistics for the MBH reconstruction, we did not report verification statistics for other permutations since we were not proposing any of them as an alternative reconstruction – a point acknowledged by realclimate and understood by Wegman but misrepresented by WA (despite my objecting to this in person to Ammann). WA reported verification r2 statistics grudgingly. You may recall our difficulties in getting WA to admit that MBH reconstructions failed verification r2 tests. They did not report these results in their first draft and refused to provide the results to me as an anonymous reviewer. In San Francisco, Ammann said that he would not report these results and refused to answer when I asked him the values at the AGU meeting. I filed a misconduct complaint against Ammann at UCAR about distorting the record by not reporting these results. In the final WA version, they grudgingly reported the verification r2 buried in the Appendix- which showed that MBH results are ~0, as we had previously reported. (They did not withdraw their press release that all our claims were “unfounded”) The NAS panel cited this finding when we drew it to their attention – without citing our prior observation of this in MM05a. The negligible r2 values apply to all of these variations – not just to the MBH reconstruction.

In WA Table 2 and in the discussion, WA report negative RE scores (-0.13; -0.20; -0.56) for the three cases in Scenario 6 (without bristlecones) . I got somewhat different (but negative) RE results in my emulation of these cases. As a result of these negative RE scores, WA conclude that none of the Scenario 6 results have “climatological meaning” (a finding with which I agree). They say:

Although the highest temperatures in this scenario for the early 15th century are similar to those reported in MM05b (max 0.53°), which would, on face value, suggest the possibility of a double bladed hockey stick result, these values once again cannot be ascribed climatological meaning

I don’t disagree with this. We agree that an MBH-type reconstruction without bristlecones lacks statistical significance. We have frequently said that we never proposed an alernative reconstruction and certainly have never suggested that the simple expedient of removing bristlecones from an MBH method would solve all the problems.

So let’s review the bidding – WA agree that reconstructions without bristlecones lack significance – a position perilously close to agreeing with MM. How do they attempt to avoid this precipice. The argument is on page 33 of their preprint:

1) they say that the AD1450 reconstruction without bristlecones is similar to the AD1450 reconstruction with bristlecones. I haven’t checked the 1450 step in detail yet. There are not very many proxies introduced in the 1450 step and I’m not sure why the results would be different, other than the system sometimes responds strongly to presence/absence of a couple of proxies. Maybe the re-introduction of Gaspé in the 1450 step is what makes a difference. But let’s grant this point for the sake of argument.

2) from this, they state: “thus, from a strictly statistical perspective inclusion of the bristlecone/foxtail pine data in the proxy PC calculations neither enhances nor degrades reconstruction performance during the second half of the 15th century.” I’m not sure of this, but again, let’s grant it for the sake of argument.

3) they conclude: “from a climate reconstruction point of view one can argue that, in general, the bristlecone/foxtail pine records do not introduce spurious noise and their inclusion is justifiable; or said more strongly, their elimination is not objectively justifiable”

A little later, they re-state this:

Over 1450-1499, the bristlecone/foxtail pine proxies neither enhance nor degrade reconstruction performance when PC summaries are used. Thus, in this situation, it is logically appropriate to retain these proxies over the entire 15th century, since they are necessary for verification skill in the first half of this period and have no impact on calibration and verification performance in the later half.

A little underwhelming as a statistical argument, to say the least. They go on to say:

These results enhance the validity of the MBH assumption that proxies used in the reconstruction process do not necessarily need to be closely related to local/regional surface temperatures, as long as they register climatic variations that are linked to the empirical patterns of the global temperature field that the MBH method (and other climate field reconstructions) target.

The NAS and Wegman Panels
While there might be a certain perverse amusement in dissecting the above WA argument, this is made unnecessary by the finding of the NAS Panel that strip-bark samples should be “avoided” in temperature reconstructions. InMM05a and MM05b, we reported specialist views that 20th century bristlecone growth could not be related to temperature [Lamarche et al 1984; Graybill and Idso, 1993; Hughes and Funkhouser 2003; to which can be added Biondi et al 1999.]

The Wegman Report noted problems with bristlecones as follows:

Although we have not addressed the Bristlecone Pines issue extensively in this report except as one element of the proxy data, there is one point worth mentioning. Graybill and Idso (1993) specifically sought to show that Bristlecone Pines were CO2 fertilized. Bondi et al. (1999) suggest [Bristlecones] “are not a reliable temperature proxy for the last 150 years as it shows an increasing trend in about 1850 that has been attributed to atmospheric CO2 fertilization.” It is not surprising therefore that this important proxy in MBH98/99 yields a temperature curve that is highly correlated with atmospheric CO2. We also note that IPCC 1996 stated that “the possible confounding effects of carbon dioxide fertilization need to be taken into account when calibrating tree ring data against climate variations.” In addition, as use of fossil fuels has risen, so does the release of oxides of nitrogen into the atmosphere, some of which are deposited as nitrates, that are fertilizer for biota. Thus tree ring growth would be correlated with the deposition of nitrates, which, in turn, would be correlated with carbon dioxide release. There are clearly confounding factors for using tree rings as temperature signals. (p 49)

In his testimony on July 27, Wegman re-stated this, adding

“At the very least, the effect of these proxies on temperature reconstruction should be examined.”

Unfortunately, neither Wegman nor the NAS panel waded through the swamps of WA 2006. The NAS panel recognized the relationship between PC methodology and bristlecones, noting as follows that the MBH98 reconstruction was “strongly dependent on data from the Great Basin region in the western United States” – which in this context means bristlecones/foxtails.

The NAS panel went on to state about the PC criticism:

The more important aspect of this criticism [principal components methodology] is the issue of robustness with respect to the choice of proxies used in the reconstruction. For periods prior to the 16th century, the Mann et al. (1999) reconstruction that uses this particular principal component analysis technique is strongly dependent on data from the Great Basin region in the western United States.

Here they seem to nicely follow the link between PC weightings and the impact of bristlecones on MBH reconstructions, illustrated above. However, here’s where the NAS panel did not follow through. In an earlier chapter, they clearly stated that “strip-bark samples” – a specific form collected by Graybill -should be “avoided for temperature reconstructions”:

The possibility that increasing tree ring widths in modern times might be driven by increasing atmospheric carbon dioxide (CO2) concentrations, rather than increasing temperatures, was first proposed by LaMarche et al. (1984) for bristlecone pines (Pinus longaeva) in the White Mountains of California. In old age, these trees can assume a “stripbark” form, characterized by a band of trunk that remains alive and continues to grow after the rest of the stem has died. Such trees are sensitive to higher atmospheric CO2 concentrations (Graybill and Idso 1993), possibly because of greater water-use efficiency (Knapp et al. 2001, Bunn et al. 2003) or different carbon partitioning among tree parts (Tang et al. 1999). … “strip-bark” samples should be avoided for temperature reconstructions (p. 50)

This recommendation goes straight to the heart of the Graybill collection that is the heart of the MBH hockey stick (and not just bristlecones, but also foxtails and even a couple of limber pine sites.) We discussed this in MM05b (astonishingly not cited by the NAS panel). In Graybill and Idso 1993, Graybill reported the following criteria that were used in collecting:

Another tree selection factor that is crucial to our findings involves tree form. Experience has indicated that many of the oldest five-needled pines have experienced cambial dieback to varying degrees. This appears to begin after several hundred years of growth and is progressive. These so-called strip-bark trees can have active cambium that is only a few centimetres in width. Foliage and cones are also accordingly limited. Trees of this nature [strip-bark] were the primary focus of investigation whenever possible. They were most commonly found and sampled in stands of bristlecone pine and limber pine in the Great Basin and in stands of foxtail pine in the Sierra Nevada.

Obviously, every Graybill site includes strip-bark samples to a greater or lesser degree (probably greater) and, in order to implement the strip-bark recommendation of the NAS panel, all of the Graybill sites should be “avoided” in a temperature reconstruction. These are essentially the sites in the MBH “CENSORED” directory and it was already studied by MBH (yielding PC series with no HS shape.) This is very similar to the network in WA Scenario 6 (although the Scenario 6 network includes several Graybill strip-bark limber pine sites).

WA reported that reconstructions without bristlecones (their Scenario 6) lack “skill” in reconstruction and “climatological meaning”, a finding with which we concur. The NAS Panel says that bristlecones should be avoided in temperature reconstructions. Thus, MBH-type reconstructions (with PC networks) with or without bristlecones are both eliminated. So much for the “refutation” of our criticisms.

Now WA, following Rutherford et al 2005, have proposed that they can “get” a hockey stick without using PC calculations. In my opinion, PC methodology applied to tree ring networks was integral to MBH98 as a paper. If they cannot get to their answer using PC methodologies applied to tree ring networks using valid proxies, then the logical course of action would be to say so and “move on”.

I’m working on some notes on their “no PC” calculations. I’ve been posting up from time to time on MBH regression methodologies and there is much to say about them as well. These matters acually become easier to deal with without the involvement of prior PC calculations.
