CERES data, as retrieved in its original state (see here) provides all-sky and clear-sky time series. Dessler 2010 made the curious decision to combine ERA clear-sky with CERES all-sky to get a CLD forcing series. This obviously invites the question about the impact of using CERES clear-sky in combination with CERES all-sky to calculate the CLD forcing series. One would have thought that this is the sort of thing that any objective peer reviewer would ask almost immediately. Unfortunately, as we’ve seen, climate science articles are too often reviewed by pals. Nor, to my knowledge, has the question been raised in the climate community.

The decision was touched on in Dessler 2010 as follows:

Previous work has shown that DRclear-sky can be calculated accurately givenwater vapor and temperature distributions (20 Dessler et al JGR 2008, 21- Moy et al JGR 2010). And, given suggestions of biases in measured clear-sky fluxes (22 -Sohn Bennartz JGR 2008), I chose to use the reanalysis fluxes here.

While peer reviewers at Science were unequal to the question, the issue was raised a month ago by Troy_CA in an excellent post at Lucia’s. Having exactly replicated Dessler’s regression results and Figure 2a, I’m re-visiting this issue by repeating the regression in Dessler 2010 style but making the plausible variation of CERES clear sky in combination with CERES all sky, and with the widely used HadCRUT3 series and got surprising results.

The supposed relationship between CLD forcing and temperature is reversed: the slope is -0.96 w/m2/K rather than 0.54 (and with somewhat higher though still low significance).

Here are exact details proving the calculation. Troy provided the following recipe for CERES data (isn’t it absurd that blog posts on “skeptic” blogs provide better replication information than “peer reviewed” articles in academic literature):

The CERES data I’ll be using in this post is available for download here.

http://ceres.larc.nasa.gov/order_data.php

I’ve chosen SSF1deg to match up with the Dessler paper, then selected global mean, monthly, Terra, full time range, with the TOA fluxes. I’ll also note that the site automatically downloads version 2.6 now instead of 2.5.

I repeated the exercise (data is now available to end 2010) and uploaded the data set (in ncdf format) to http://www.climateaudit.info/data/ceres. The following operations retrieve data for analysis and plotting:

library(ncdf)

download.file(“http://www.climateaudit.info/data/ceres/CERES_SSF1deg-Month-lite_Terra_Ed2.6_Subset_200003-201012.nc”,”temp.nc”,mode=”wb”)

ceres=open.ncdf(“temp.nc”)

net=ceres.all.data<-ts(get.var.ncdf(ceres, "gtoa_net_all_mon"),start=c(2000,3),freq=12)

tsp(net) #

clr<-ts(get.var.ncdf(ceres, "gtoa_net_clr_mon"),start=c(2000,3),freq=12)

cld= net-clr

month=window( ts( rep(1:12,11),start=2000,freq=12),2000.16,tsp(net)[2])

anom=function(x,Month=month) { #function to take anomalies by month

y=factor(Month) ; norm= tapply(x,factor(Month),mean,na.rm=T)

levels(y)=norm; y=as.numeric(as.character(y)); y=x-y

return(y)

}

cld=anom(cld)source("http://dl.dropbox.com/u/9160367/Climate/ClimateTimeSeries.R") #Troy's functions

had<-window(getHadCRUt(), start=c(2000,3), end=2010.99)

had=had-mean(had)

Dessler’s regression for the conclusion in his Abstract can be simply replicated for CERES CLD data and HadCRU as follows:

fm=lm(cld~had)

summary(fm)

This yields a slope of -0.96 +- 0.98 w/m2/K REVERSING the result reported in Dessler 2010 using a combination of CERES all-sky and ERA clear-sky (0.54 +- 0.94 w/m2/K). r^2 remain very low but higher than that reported in Dessler 2010.

#had -9.556e-01 4.908e-01 -1.947 0.0538 .

#Residual standard error: 0.5605 on 128 degrees of freedom

#Multiple R-squared: 0.02876, Adjusted R-squared: 0.02117

#F-statistic: 3.79 on 1 and 128 DF, p-value: 0.05376

The scatter plot corresponding to Dessler 2010 Figure 2a is shown below. While I feel uneasy using the term “confidence intervals” with such weak relationships, the 2-sigma confidence interval brackets the -1 to -1.5 w/m2/K range that Dessler 2010 sought to exclude.

Figure 1. Re-doing Dessler 2010 Figure 2.

For comparison, here is Dessler’s original figure.

The questions are obvious.

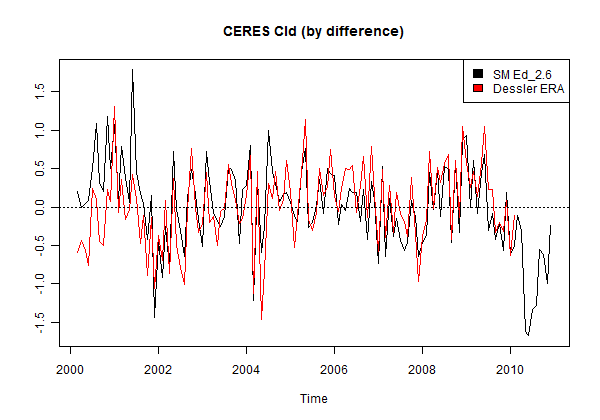

PS. Just to confirm that both flux series are correctly oriented, here is a plot of the Dessler CLD series versus the CERES CLD series (the correlation is 0.73):
