New Data from Hantemirov

Yesterday, I received updated Yamal data (to 2005) from Rashit Hantemirov, together with a cordial cover note. As CA and other readers know, Hantemirov had also promptly sent me data for Hantemirov and Shiyatov 2002. There are 120 cores in the data set, which comes up to 2005. I’ve calculated a chronology from this information – see below.

In the wake of the 2009 Yamal discussion, CRU had contacted Hantemirov for additional data. In CG2-1025 on Oct 5, 2009, Hantemirov wrote Melvin, sending additional data as follows:

Dear Tom,
files with living trees data attached, that I use to update Yamal chronology (these data have been used among many others in Esper et al. 2009: [1]
First letters in ID means river (valley):
TNL – Tanlova-yakha;
HDT, M, X – Khadyta-yakha;
POR – Porza-yakha;
all others – Yadayakhodyyakha

This email caught my attention because the CRU reconstruction using “all the data” in October 2009 did not contain any cores with prefix TNL or HDT. (Note that the HDT, M and X prefixes denote cores from Khadyta River – which Mann and Real Climate declared to be “inappropriate” for use in a reconstruction.)

In Table S2 to Esper et al 2009 (mentioned by Hantemirov), site 25 was located in Yamal (70E, 67.5N) and had 120 cores.

I did an RCS-style calculation on the Hantemirov data set and repeated the comparison illustrated in my original Climate Audit post of Sep 27, 2009 that initiated the present controversy, as shown below:

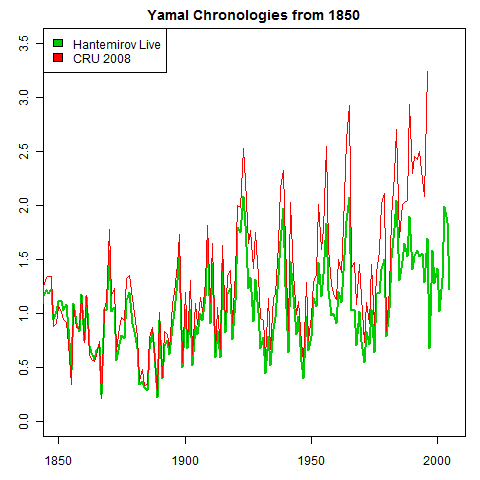

Figure 1. Yamal Chronologies. Green – from Hantemirov _liv.rwl dataset; red- from Briffa et al 2008.

Now here is the corresponding graphic from the Yamal post in September 2009:

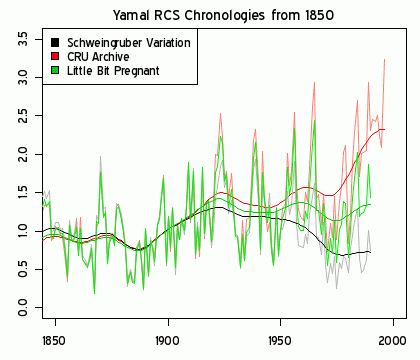

Figure 2. Yamal chronologies from original post. Green – Yamal data from Briffa 2000 plus Schweingruber Khadyta River; red- from Briffa et al 2008.

Here is the calculation from Hantemirov data compared to the Sept 2009 green chronology plotted together:

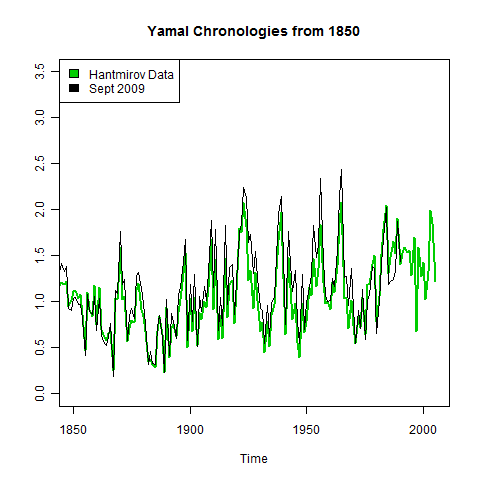

Figure 3 – From Hantemirov data versus Sept 2009.

I think even my severest critic might observe that the chronology using the Hantemirov data set is remarkably similar to the green chronology of September 2009. The closeness of the chronologies is partly coincidence – the September calculation was only intended to show the potential impact of additional data on the very small Briffa data set. But coincidence or not, the likeness really is remarkable. The results through the 1990s and early 2000s are interesting as well: elevated ring widths, but not the multi-sigma of Briffa’s Yamal chronology.

While the form of my RCS calculation differs slightly from CRU’sstyle in Briffa et al 2008 (which is not archived), I am 99.9% sure that the difference is not material to the major point of the result and that an RCS calculation on the Hantemirov data in current CRU style would yield a chronology indistinguishable from the one that I’ve presented (yes, an “insta-chronology”, but they really only take an instant to calculate.)

In contrast, CRU’s 2009 calculation, said to use “all the data”, showed negligible change from the chronology of Briffa et al 2008, as shown below (on the same scale):

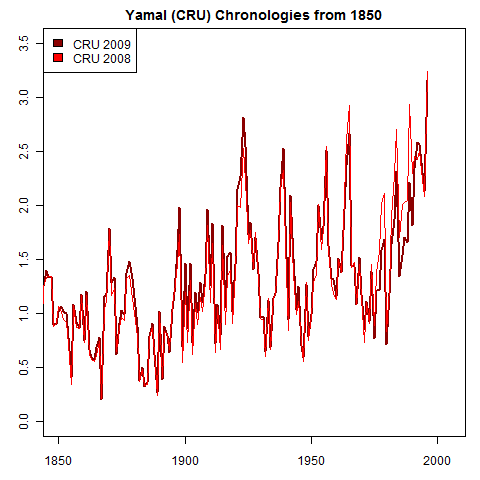

Figure 4. Yamal chronologies of Briffa et al 2008 and CRU 2009.

The difference between the two results is the selection of data. The 2009 CRU calculation only included a fraction of the Hantemirov dataset (while increasing populations at the YAD, POR ad JAH sites.)

Esper et al 2009 has almost unintelligible graphic and nothing is archived. (It was received on Jan 28, 2009 and accepted on Jan 30, 2009.)

It discusses West Siberia and includes the Yamal and Urals areas. Here is an excerpt from its Figure 6. The red is the ring width chronology and, if you squint, it has points of similarity to the green curve in Figure 1 – it definitely does not show any support for Briffa-style multi-sigma growth.

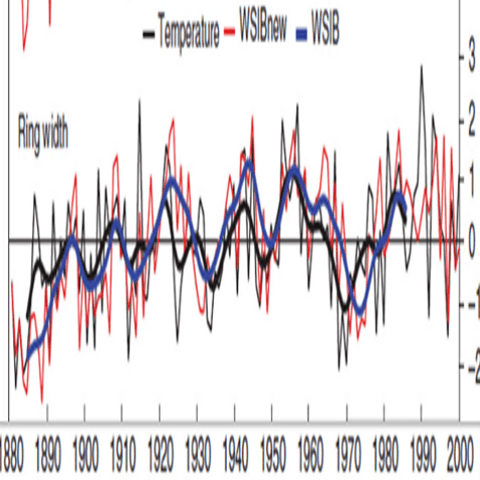

Figure 5. Excerpt from Esper et al 2009 Figure 6 (resized to correspond). “Middle panel shows the WSIB and WSIBnew tree growth data scaled over the 1881–1990 (WSIB) and 1881–2000 (WSIBnew) periods to regional JJA temperatures”

The chronology here was calculated as follows (you can’t replicate this because I haven’t placed the Hantemirov data online) but it shows the form of calculation and shows that the data set is the same as the one used in Esper et al 2009. This should generates all figures turnkey (May 16, 2012).

	trim=function(x) window(x, start=min(time(x)[!]),end=max(time(x)[!]) )

#Hantemirov Living Data
  #living data from Hantemirov sent by email
 	#range(tree$year) # [1] 1580 2005
  	#length(unique(tree$id)) # [1] 120
	#X=data.frame(year=c(time(chron.hant)), chron=chron.hant)
	#write.csv(X, file="d:/climate/data/yamal/chron.hant.csv", row.names=FALSE)
	X= read.csv("")

#Yamal Chronologies
  #Briffa 2008 Chronology
	loc= ""
	  download.file(loc, "temp",mode="wb");  load("temp")
	tsp(yamal08) #-202 1996
#Figure 1: compare Hantemirov Living RCS to CRU 2008
	legend("topleft",fill=3:2,legend=c("Hantemirov Live","CRU 2008") )
	title("Yamal Chronologies from 1850")

#Figure 2: this is from a September 2009 post
    #script is at

#Figure 3: compare Sept 2009 to Present graphic
	  tsp(crn2) #  -202 1990
	legend("topleft",fill=c(3,1),legend=c("Hantmirov Data","Sept 2009") )
 	title("Yamal Chronologies from 1850")

#Figure 4: compare CRU 2008 to CRU 2009
 	loc= ""
	 download.file(loc, "temp",mode="wb");  load("temp")
	  tsp(yamal09) # 202 1996    1

	legend("topleft",fill=c("red4","red"),legend=c("CRU 2009","CRU 2008") )
	title("Yamal (CRU) Chronologies from 1850")
