PAGES19: 0-30S

In a Climategate email. Keith Briffa famously sneered at Michael Mann’s claim that a temperature reconstruction could represent a hemisphere, including the tropics, by regressing a “few poorly temperature respresentative tropical series” against “any other target series” – even the trend of Mann’s own “self-opinionated verbiage” as follows:

I am sick to death of Mann stating his reconstruction represents the tropical area just because it contains a few (poorly temperature representative ) tropical series. He is just as capable of regressing these data again any other “target” series , such as the increasing trend of self-opinionated verbage he has produced over the last few years , and …  (better say no more)

People frequently say that the PAGES2K reconstruction has “vindicated” Mannian reconstructions – but neglect to mention that PAGES2K similarly regressed a “few poorly temperature representative tropical series” onto an increasing trend – thus, repeating, rather than vindicating, (one of) Mann’s erroneous methodologies.

In today’s article on the Hockey Stick featured in the new IPCC Hockey Stick diagram, I’ll look at proxies in the southern tropics (0-30S latband). The proxy network turns out to be defective in bizarre, unexpected ways, not reported on or discussed in the original article.

The 0-30S Network

The 0-30S latitude band is mostly Indo-Pacific tropical ocean, but includes most of Australia and South America and the lower part of Africa.

The PAGES2K 0-30S proxy network has 46 proxies (as compared to 8 proxies in the 60-30S network). It has oneyes, one – proxy from an ocean cores and two proxies from land. 43 of 46 series are very short coral series.

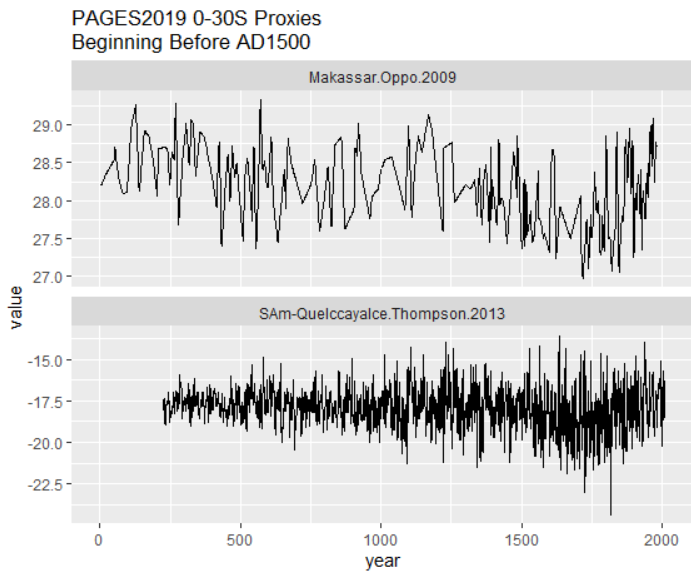

The 0-30S network only has two (!?!) proxies with values prior to AD1500: the ocean core (a temperature estimate from Mg/Ca at Makassar Strait, Indonesia [Oppo et al, Nature 2009] and the classic ice core d18O series from Quelccaya, Peru (as updated in 2013) that had been staple of Mann et al 1998-99, Jones et al 1998 and many other studies. Neither of these series contains a hockey stick; if you squint, you can discern lower values in each in a generalized LIA period.

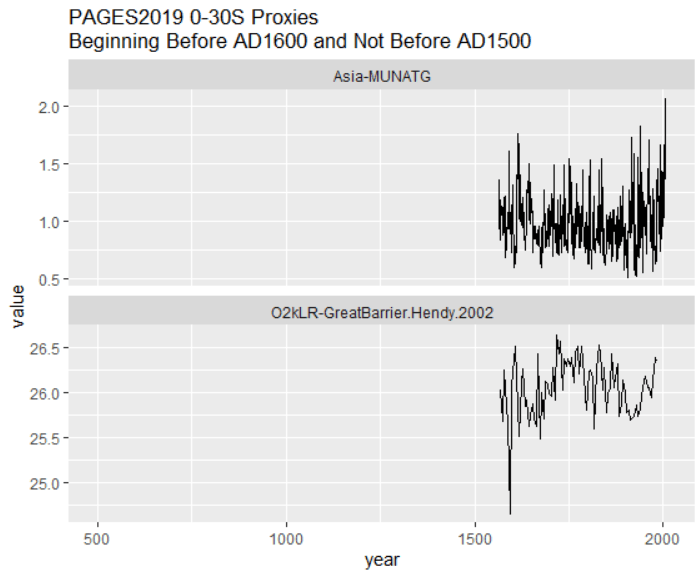

Indeed, there are only two other 0-30S proxies that begin prior to AD1600: the Hendy (2002) Great Barrier Reef temperature reconstruction that does not have a HS; an Indonesian tree ring series (INDO0005) that is non-descript in the underlying measurement (rwl) data at NOAA, but which, according to a thus far undisclosed calculation, closes on a late spike – like numerous other sites in the PAGES2K Asia tree ring calculations. I’ve sought information on this chronology from the lead authors of PAGES2K 2019 but they don’t know and have refused to bother finding out.

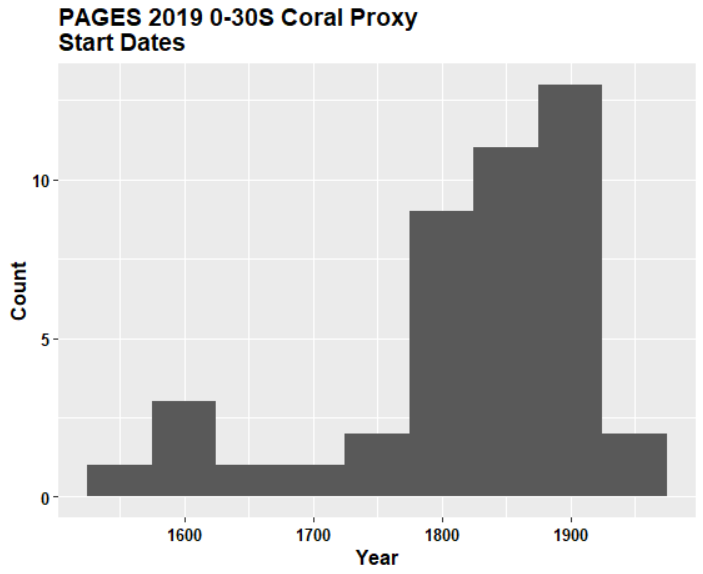

The rest of the 0-30S network consists of 42(!) short and micro-short coral series. Below is a histogram of start dates for the 43 (including Hendy GBR) coral proxies. Half of them start after AD1850 and no less than 30% after AD1890. One series (Clipperton Atoll, Wu [2014]) begins in AD1942 !?! None of these short series shed any light on whether the medieval period, for example, was warmer than modern period or not.

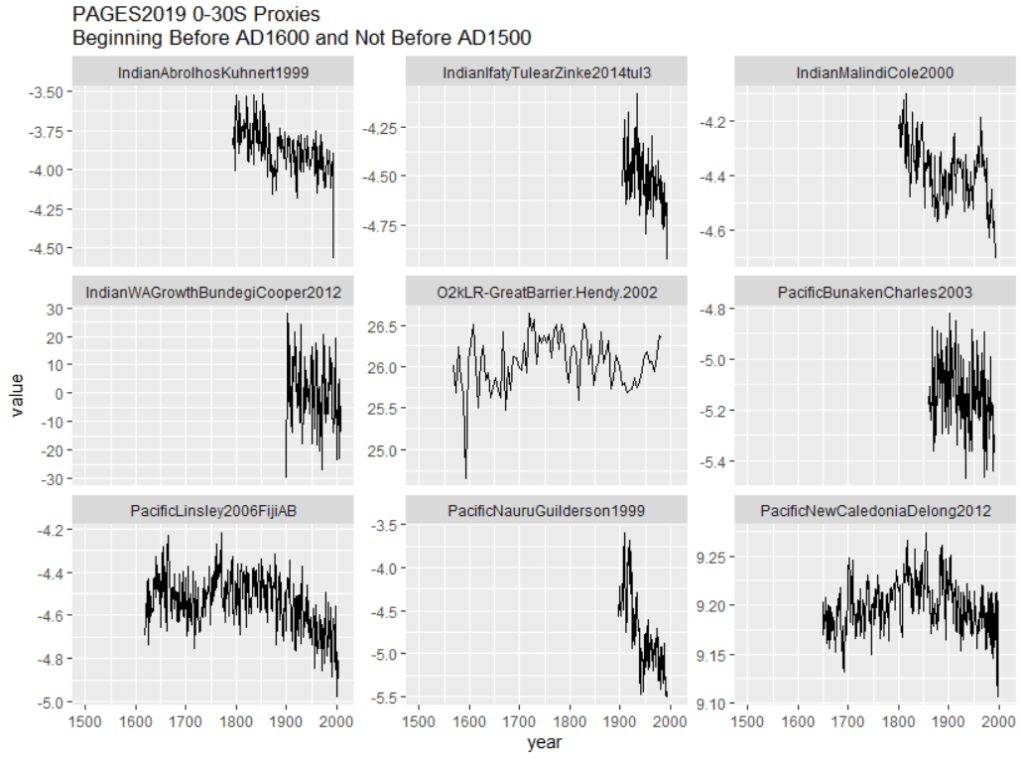

Most of the coral proxies show substantial change in d18O and/or Sr/Ca in the 20th century. Here is a random sample of 9 (which, by chance, included the Hendy series shown above). The Hendy series is very different than typical series: PAGES2K is primarily populated with d18O series – which, in specialist articles, are seldom, if ever, used as temperature proxies, as Sr/Ca is usually preferred. Changes in 20th century coral d18O are nearly always much more pronounced than corresponding changes in coral Sr/Ca. Perhaps that’s why they were selectively chosen into the PAGES2K network.

Coral d18O is very responsive to rainfall amount and many 0-30S coral series are located along convergence zones where there is very strong latitudinal or longitudinal gradient in rainfall (and thus d18O). This is a large topic that ought to have been discussed by PAGES2K in explanation of their preference for d18O series. (I have extensive notes on this issue and will try to re-visit.) That these series go “down” doesn’t matter as more negative values are (ex ante) believed to represent higher temperatures (as opposed to the too prevalent ex post cherry picking).

Conclusion

How the PAGES2K authors obtained a big-bladed Hockey Stick from this data cannot be determined without examining their code, which, to my knowledge, has not been archived. (Nor have it been provided to me upon tweet request.) My surmise is that they use some sort of “stepwise” method in which successive steps incorporate the proxies available in that step. Such techniques will effectively splice the coral blade onto the two non-descript non-bladed long proxies to present a sort of hockey stick. The failure of the two long proxies to record the proposed blade means that the confidence levels prior to AD1800 or so extend from the “floor to the ceiling” – an apt phrase used by Rosanne d’Arrigo many years ago. I.e. with this set of information, we know essentially nothing about 0-30S temperatures prior to AD1800 or so. This does not mean that we actually know nothing. There are many interesting proxies in the 0-30S latband and many fascinating discussions in technical literature that does not appear to be reflected in the IPCC report.

Consolidating some of the information in this post with my prior post on the 30-60S latband, which consisted almost entirely (~96%) of ocean, PAGES2K only used one ocean core in the 0-60S latband, totally omitting high resolution alkenone series. Only four PAGES2019 series in the 0-60S latband start prior to AD1100 and none of them have a HS shape.

Overall, I think that it’s fair to say that Briffa’s criticism of Mann remains just as appropriate for the IPCC in 2021, as it did in 2001. Like Mann’s network, PAGES 2019 “contains a few (poorly temperature representative ) tropical series”. And PAGES 2019 authors “were just as capable [as Mann] of regressing these data again any other “target” series , such as the increasing trend of self-opinionated verbage he has produced over the last few years”. Indeed, if anything, the new generation of climate activists have proved themselves more than capable of continuing Mann’s “trend of self-opinionated verbiage” to, shall we say, “unprecedented” levels.
